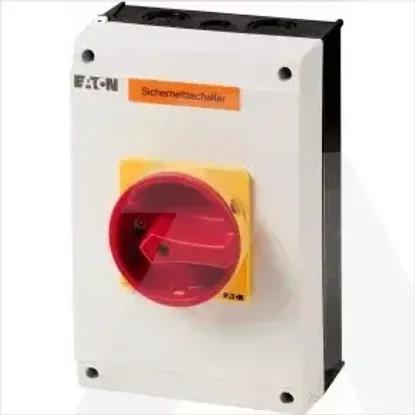

T5B-3-8342/I4-SI
Code: 1043190
ManufacturerEaton
Catalog number207250
TypeT5B-3-8342/I4-SI
CategorySwitch disconnector
EAN code4015082072506
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operating voltage690 - 690V
Depth167mm
Width125mm
Rated operation power at AC-3, 400 V22kW
Height175mm
Conditioned rated short-circuit current Iq2kA
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Switching power at 400 V30kW
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
Version as safety switchYes
Colour control elementRed
Rated short-time withstand current lcw1.3kA
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Type of control elementDoor coupling rotary drive
Rated operation power at AC-23, 400 V30kW
Version as maintenance-/service switchNo
Version as emergency stop installationYes
Suitable for floor mountingYes
Motor drive integratedNo
Voltage release optionalNo
Number of switches1
Version as main switchNo
Rated permanent current at AC-21, 400 V63A
InterlockableYes
Motor drive optionalNo
Suitable for intermediate mountingNo
Number of auxiliary contacts as change-over contact0
Version as reversing switchNo
Rated permanent current at AC-23, 400 V63A
Degree of protection (NEMA)12
With pre-assembled cablingNo
Rated permanent current Iu63A
Number of poles6
Max. rated operation voltage Ue AC690V
