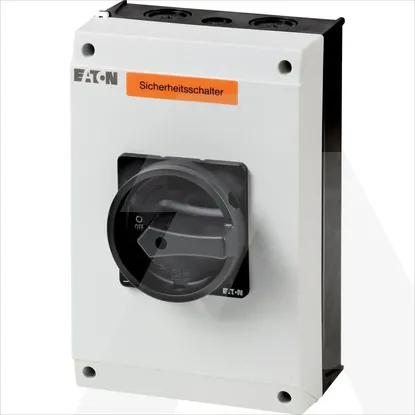

T5B-3-8342/I4-SI-SW
Code: 1043191
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as emergency stop installationNo
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Version as main switchNo
Rated permanent current Iu63A
Version as maintenance-/service switchNo
Number of auxiliary contacts as normally closed contact0
Rated operating voltage690 - 690V
Version as safety switchYes
Switching power at 400 V30kW
Conditioned rated short-circuit current Iq2kA
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-23, 400 V30kW
Rated short-time withstand current lcw1.3kA
Rated permanent current at AC-23, 400 V63A
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V22kW
Number of switches1
Number of poles6
Motor drive optionalNo
Rated permanent current at AC-21, 400 V63A
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Device constructionComplete device in housing
Suitable for distribution board installationNo
Voltage release optionalNo
Suitable for front mounting centreNo
Motor drive integratedNo
Suitable for intermediate mountingNo
Colour control elementBlack
Type of control elementDoor coupling rotary drive
Width125mm
With pre-assembled cablingNo
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)12
Depth167mm
Type of electrical connection of main circuitScrew connection
InterlockableYes
Height175mm
