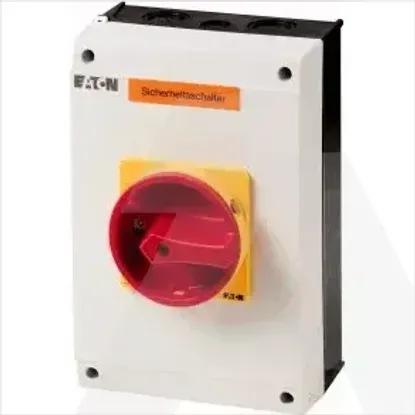

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width125mm
Height175mm
Depth152mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V22kW
Number of auxiliary contacts as normally open contact2
Rated permanent current Iu63A
Number of poles6
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
Motor drive integratedNo
Number of switches1
Version as emergency stop installationYes
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq2kA
Version as main switchNo
Type of control elementDoor coupling rotary drive
Version as safety switchYes
Type of electrical connection of main circuitScrew connection
Suitable for distribution board installationNo
Voltage release optionalNo
Suitable for front mounting centreNo
Version as maintenance-/service switchNo
Rated short-time withstand current lcw1.3kA
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Rated operation power at AC-23, 400 V30kW
Colour control elementRed
InterlockableYes
Motor drive optionalNo
Device constructionComplete device in housing
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V63A
Rated permanent current at AC-21, 400 V63A
Switching power at 400 V30kW
Degree of protection (NEMA)12
