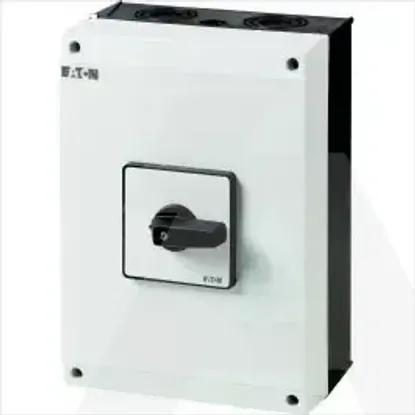

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchNo
Version as emergency stop installationNo
Depth280mm
Number of poles6
Rated operation power at AC-3, 400 V30kW
Conditioned rated short-circuit current Iq2kA
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
Motor drive integratedNo
Rated permanent current Iu100A
Number of auxiliary contacts as normally closed contact1
Type of control elementShort thumb-grip
Number of auxiliary contacts as normally open contact1
InterlockableNo
Number of switches1
Degree of protection (IP), front sideIP65
Height197mm
Width200mm
Type of electrical connection of main circuitScrew connection
Version as safety switchNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V100A
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Switching power at 400 V55kW
Version as maintenance-/service switchNo
Rated permanent current at AC-23, 400 V100A
Suitable for intermediate mountingNo
Suitable for floor mountingYes
Suitable for front mounting centreNo
With pre-assembled cablingNo
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
Degree of protection (NEMA)12
Colour control elementBlack
Suitable for distribution board installationNo
Motor drive optionalNo
Rated operation power at AC-23, 400 V55kW
Rated short-time withstand current lcw1.7kA
