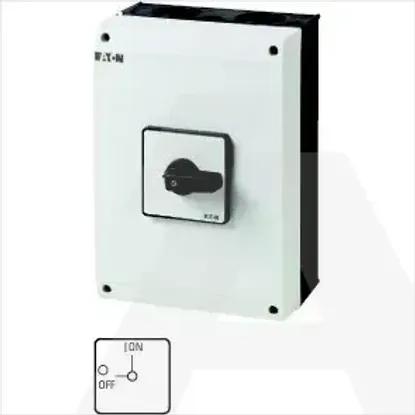

T5-4-8344/I5

Code: 1043206

ManufacturerEaton
Catalog number207272
TypeT5-4-8344/I5
CategorySwitch disconnector
EAN code4015082072728

Details

  • •Low-voltage industrial components
  • •Switch disconnector
  • •1 KOM
  • •EATON

Technical specifications

Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
Version as maintenance-/service switchNo
Number of switches1
Version as main switchNo
InterlockableNo
Suitable for floor mountingYes
Version as safety switchNo
Conditioned rated short-circuit current Iq2kA
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally open contact0
Type of control elementToggle
Version as emergency stop installationNo
Colour control elementBlack
Rated operation power at AC-23, 400 V55kW
Number of auxiliary contacts as normally closed contact0
Rated short-time withstand current lcw1.7kA
Rated operation power at AC-3, 400 V30kW
Degree of protection (IP), front sideIP65
Motor drive integratedNo
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
Device constructionComplete device in housing
Switching power at 400 V55kW
Voltage release optionalNo
Suitable for intermediate mountingNo
Version as reversing switchNo
Suitable for front mounting centreNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V100A
Rated permanent current at AC-21, 400 V100A
Motor drive optionalNo
Rated permanent current Iu95A
Number of poles8
Max. rated operation voltage Ue AC690V
