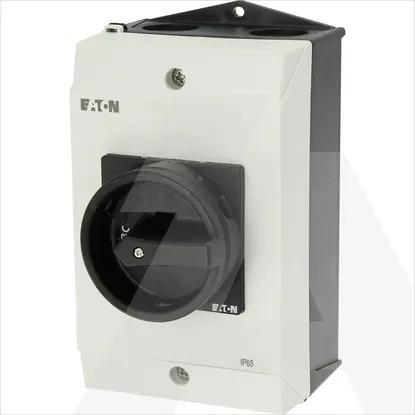

Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •EATON
Technical specifications
Width100mm
Height180mm
Depth115mm
Colour housingBlack
Rated operation power at AC-3, 400 V7.5kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Rated permanent current Iu25A
Number of poles3
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq80kA
Material housingPlastic
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Number of switches1
InterlockableYes
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Type of control elementDoor coupling rotary drive
Version as main switchYes
Version as safety switchNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V13kW
Rated short-time withstand current lcw0.64kA
Colour control elementBlack
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Voltage release optionalNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V25A
Switching power at 400 V13kW
Version as reversing switchNo
Rated permanent current at AC-23, 400 V25A
Degree of protection (NEMA)12
With pre-assembled cablingNo
Suitable for floor mountingNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
P1-25/I2/SVB-SW/HI11
