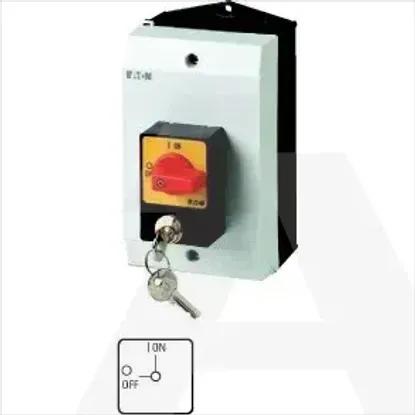

P1-25/I2/SVA(A)
Code: 1043234
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchNo
Version as emergency stop installationNo
Version as reversing switchNo
Version as safety switchNo
Version as maintenance-/service switchNo
Number of switches1
Rated operating voltage690 - 690V
Rated permanent current Iu25A
Conditioned rated short-circuit current Iq80kA
Rated operation power at AC-3, 400 V7.5kW
Switching power at 400 V13kW
Number of poles3
Number of auxiliary contacts as normally closed contact0
Rated permanent current at AC-21, 400 V25A
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-23, 400 V13kW
Motor drive integratedNo
Device constructionComplete device in housing
Suitable for floor mountingYes
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Number of auxiliary contacts as normally open contact0
Colour control elementRed
Suitable for distribution board installationNo
Voltage release optionalNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Type of control elementShort thumb-grip
Rated permanent current at AC-23, 400 V25A
Type of electrical connection of main circuitScrew connection
Degree of protection (NEMA)12
With pre-assembled cablingNo
Width100mm
InterlockableNo
Depth126mm
Height180mm
Degree of protection (IP), front sideIP65
Rated short-time withstand current lcw0.64kA
Related products
