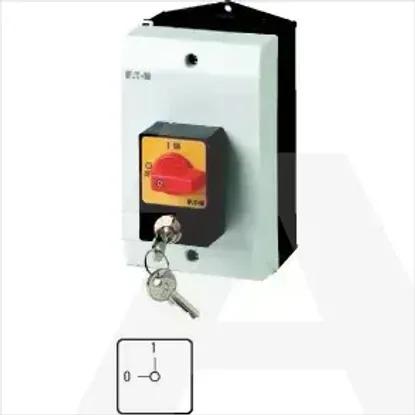

P1-25/I2/SVA(S)-RT
Code: 1043236
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchNo
Version as maintenance-/service switchNo
Version as safety switchNo
Rated short-time withstand current lcw0.64kA
Rated operation power at AC-3, 400 V7.5kW
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-23, 400 V25A
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq80kA
Switching power at 400 V13kW
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-23, 400 V13kW
Rated permanent current Iu25A
Version as emergency stop installationNo
Rated permanent current at AC-21, 400 V25A
Number of auxiliary contacts as change-over contact0
Number of poles3
Number of auxiliary contacts as normally open contact0
Motor drive optionalNo
Number of switches1
Motor drive integratedNo
Device constructionComplete device in housing
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Colour control elementRed
Suitable for intermediate mountingNo
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
InterlockableNo
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)12
Type of control elementShort thumb-grip
Height180mm
Width100mm
Depth126mm
