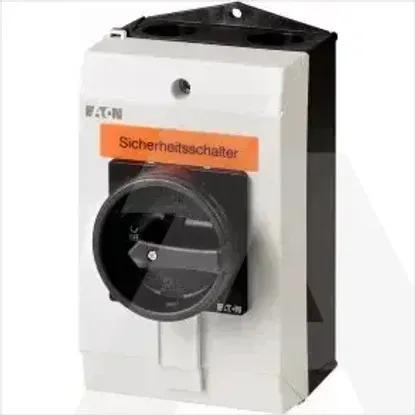

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated operating voltage690 - 690V
Height180mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V7.5kW
Number of poles3
Number of auxiliary contacts as normally open contact0
Depth125mm
Degree of protection (IP), front sideIP65
Rated permanent current Iu25A
Width100mm
Number of auxiliary contacts as change-over contact0
Number of switches1
Conditioned rated short-circuit current Iq50kA
Motor drive integratedNo
InterlockableYes
Type of control elementDoor coupling rotary drive
Version as maintenance-/service switchNo
Rated permanent current at AC-21, 400 V25A
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Voltage release optionalNo
Suitable for floor mountingYes
Rated operation power at AC-23, 400 V13kW
Version as main switchNo
Colour control elementBlack
Suitable for front mounting centreNo
Version as safety switchYes
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Device constructionComplete device in housing
Rated short-time withstand current lcw0.64kA
Rated permanent current at AC-23, 400 V25A
Version as reversing switchNo
Switching power at 400 V13kW
Degree of protection (NEMA)12
With pre-assembled cablingNo
