Details
- •Low-voltage industrial components

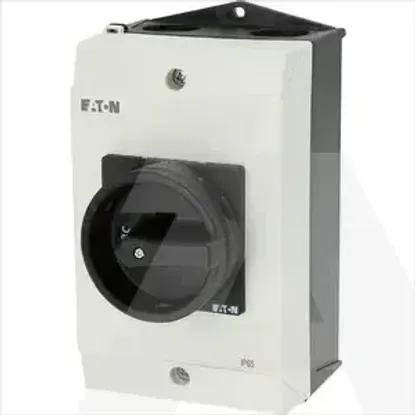

- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height180mm
Depth115mm
Rated operation power at AC-3, 400 V13kW
Width100mm
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact1
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally closed contact1
Motor drive integratedNo
Version as emergency stop installationNo
Type of control elementDoor coupling rotary drive
Rated permanent current Iu32A
Rated operating voltage690 - 690V
Version as main switchYes
Number of poles3
Version as maintenance-/service switchYes
Version as safety switchNo
InterlockableYes
Number of switches1
Conditioned rated short-circuit current Iq80kA
Suitable for floor mountingYes
Rated short-time withstand current lcw0.64kA
Colour control elementBlack
Rated operation power at AC-23, 400 V15kW
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
Device constructionComplete device in housing
Version as reversing switchNo
Rated permanent current at AC-23, 400 V32A
Voltage release optionalNo
With pre-assembled cablingNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V32A
Degree of protection (NEMA)12
Max. rated operation voltage Ue AC690V
Switching power at 400 V15kW
