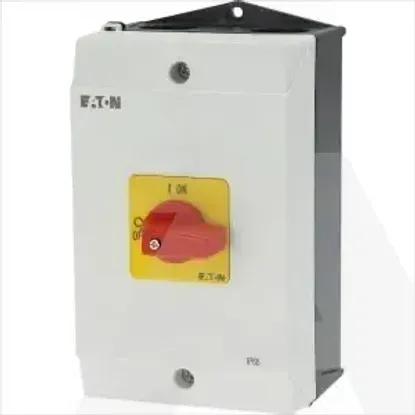

P1-32/I2-RT
Code: 1043251
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchNo
Version as emergency stop installationNo
Version as maintenance-/service switchNo
Version as reversing switchNo
Number of switches1
Rated permanent current Iu32A
Max. rated operation voltage Ue AC690V
Version as safety switchNo
Rated permanent current at AC-23, 400 V32A
Rated operating voltage690 - 690V
Rated permanent current at AC-21, 400 V32A
Rated short-time withstand current lcw0.64kA
Rated operation power at AC-3, 400 V13kW
Switching power at 400 V15kW
Conditioned rated short-circuit current Iq80kA
Rated operation power at AC-23, 400 V15kW
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Voltage release optionalNo
Number of poles3
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Device constructionComplete device in housing
Suitable for floor mountingYes
Motor drive integratedNo
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Colour control elementRed
Suitable for distribution board installationNo
InterlockableNo
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
Type of control elementShort thumb-grip
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)12
Width100mm
Depth107mm
Height180mm
