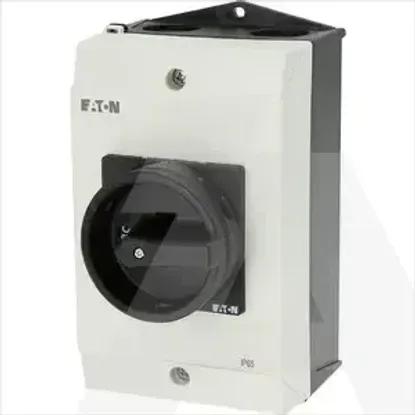

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width100mm
Number of switches1
Number of poles3
Conditioned rated short-circuit current Iq80kA
Height180mm
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Rated operation power at AC-3, 400 V13kW
Depth125mm
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Rated permanent current Iu32A
InterlockableYes
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Version as safety switchYes
Version as main switchNo
Rated short-time withstand current lcw0.64kA
Type of control elementDoor coupling rotary drive
Version as maintenance-/service switchNo
Version as reversing switchNo
Version as emergency stop installationNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V32A
Rated permanent current at AC-23, 400 V32A
Switching power at 400 V15kW
Suitable for distribution board installationNo
Suitable for floor mountingYes
Colour control elementBlack
Degree of protection (NEMA)12
Voltage release optionalNo
Rated operation power at AC-23, 400 V15kW
With pre-assembled cablingNo
Max. rated operation voltage Ue AC690V
Suitable for front mounting 4-holeNo
