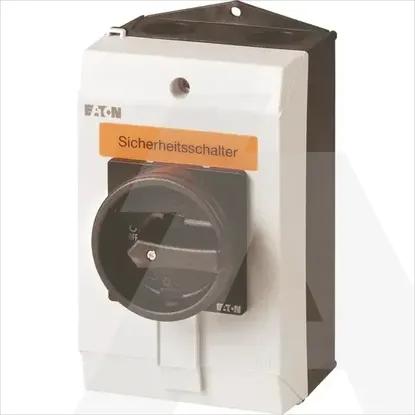

P1-32/I2-SI/N-SW
Code: 1043264
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchNo
Version as safety switchYes
Number of switches1
Rated operating voltage690 - 690V
Max. rated operation voltage Ue AC690V
Version as main switchNo
Version as reversing switchNo
Version as emergency stop installationNo
Rated permanent current at AC-23, 400 V32A
Rated permanent current Iu32A
Conditioned rated short-circuit current Iq80kA
Number of auxiliary contacts as change-over contact0
Rated short-time withstand current lcw0.64kA
Motor drive optionalNo
Number of auxiliary contacts as normally open contact0
Rated permanent current at AC-21, 400 V32A
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Rated operation power at AC-3, 400 V13kW
Suitable for floor mountingYes
Number of poles4
Switching power at 400 V15kW
Device constructionComplete device in housing
Voltage release optionalNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Rated operation power at AC-23, 400 V15kW
Colour control elementBlack
Degree of protection (NEMA)12
Width100mm
Type of electrical connection of main circuitScrew connection
InterlockableYes
Degree of protection (IP), front sideIP65
Height180mm
Depth125mm
Type of control elementDoor coupling rotary drive
Suitable for front mounting 4-holeNo
With pre-assembled cablingNo
