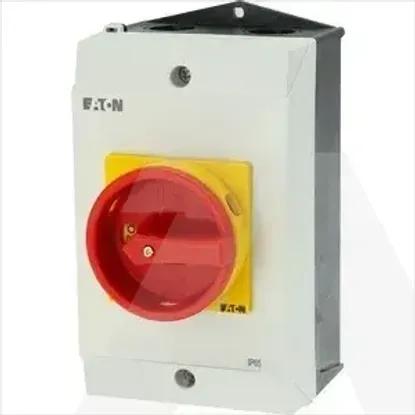

P3-63/I3/SVB
Code: 1043265
ManufacturerEaton
Catalog number207335
TypeP3-63/I3/SVB
CategorySwitch disconnector
EAN code4015082073350
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Rated operating voltageV
InterlockableYes
Number of switches1
Suitable for front mounting centreNo
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Rated short-time withstand current lcw-kA
Version as emergency stop installationYes
Suitable for distribution board installationNo
Version as safety switchNo
Rated operation power at AC-23, 400 V37kW
Version as main switchYes
Suitable for front mounting 4-holeNo
Version as maintenance-/service switchYes
Suitable for floor mountingYes
Motor drive optionalNo
Degree of protection (IP), front sideIP65
Type of control elementOther
Suitable for intermediate mountingNo
Conditioned rated short-circuit current Iq0kA
Motor drive integratedNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
Switching power at 400 V-kW
Version as reversing switchNo
Rated permanent current at AC-23, 400 V63A
Rated permanent current Iu63A
Number of poles3
Max. rated operation voltage Ue AC690V
