Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact1
Rated operating voltageV
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu63A
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq0kA
Number of poles3
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
InterlockableYes
Type of electrical connection of main circuitScrew connection
Number of switches1
Suitable for front mounting 4-holeNo
Version as safety switchNo
Type of control elementOther
Version as maintenance-/service switchYes
Version as main switchYes
Rated short-time withstand current lcw-kA
Version as emergency stop installationNo
Suitable for floor mountingYes
Rated operation power at AC-23, 400 V37kW
Number of auxiliary contacts as normally closed contact1
Suitable for front mounting centreNo
Device constructionComplete device in housing
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Suitable for distribution board installationNo
Motor drive optionalNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V-A
Version as reversing switchNo
Rated permanent current at AC-23, 400 V63A
Switching power at 400 V-kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

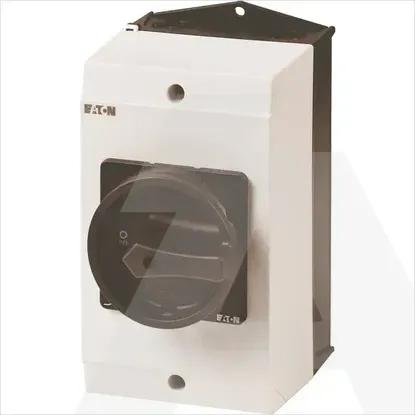

P3-63/I3/SVB-SW/HI11
