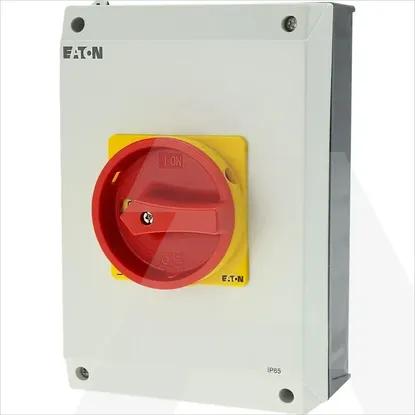

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width160mm
Depth139mm
Height240mm
Motor drive integratedNo
InterlockableYes
Conditioned rated short-circuit current Iq100kA
Degree of protection (IP), front sideIP65
Rated permanent current Iu63A
Version as emergency stop installationYes
Rated operating voltage690 - 690V
Number of switches1
Number of poles3
Number of auxiliary contacts as normally closed contact0
Type of control elementDoor coupling rotary drive
Rated operation power at AC-3, 400 V30kW
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Colour control elementRed
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Device constructionComplete device in housing
Suitable for distribution board installationNo
Version as reversing switchNo
Degree of protection (NEMA)12
Rated short-time withstand current lcw1.26kA
Suitable for intermediate mountingNo
Suitable for floor mountingYes
Rated permanent current at AC-21, 400 V63A
Version as safety switchYes
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V63A
Suitable for front mounting centreNo
Rated operation power at AC-23, 400 V30kW
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Switching power at 400 V30kW
Version as maintenance-/service switchYes
