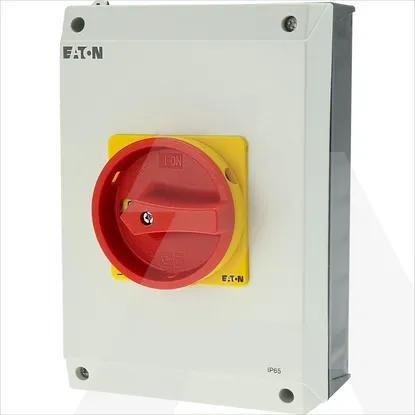

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height240mm
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V30kW
Number of poles3
Conditioned rated short-circuit current Iq100kA
Number of auxiliary contacts as normally closed contact1
Rated permanent current Iu63A
Depth139mm
Width160mm
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally open contact1
Motor drive integratedNo
InterlockableYes
Type of electrical connection of main circuitScrew connection
Number of switches1
Type of control elementDoor coupling rotary drive
Rated short-time withstand current lcw1.26kA
Rated operation power at AC-23, 400 V30kW
Version as reversing switchNo
Colour control elementRed
Suitable for front mounting 4-holeNo
Max. rated operation voltage Ue AC690V
Suitable for floor mountingYes
Version as main switchYes
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Rated permanent current at AC-23, 400 V63A
Rated permanent current at AC-21, 400 V63A
Voltage release optionalNo
Version as safety switchYes
Device constructionComplete device in housing
Suitable for front mounting centreNo
Version as emergency stop installationYes
Switching power at 400 V30kW
Motor drive optionalNo
Degree of protection (NEMA)12
Version as maintenance-/service switchYes
With pre-assembled cablingNo
