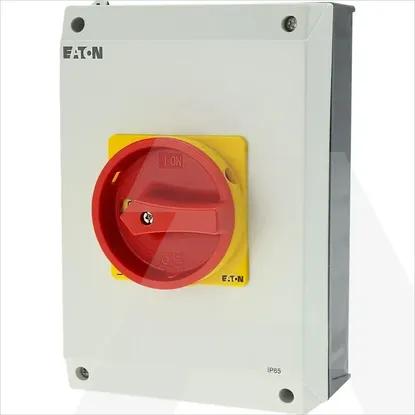

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth139mm
Height240mm
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq100kA
Width160mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Version as main switchYes
Number of poles4
Rated operation power at AC-3, 400 V30kW
Type of electrical connection of main circuitScrew connection
Number of switches1
InterlockableYes
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Motor drive integratedNo
Rated permanent current Iu63A
Version as maintenance-/service switchYes
Version as safety switchYes
Version as emergency stop installationYes
Type of control elementDoor coupling rotary drive
Rated short-time withstand current lcw1.26kA
Rated operation power at AC-23, 400 V30kW
Suitable for floor mountingYes
Colour control elementRed
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V63A
Suitable for distribution board installationNo
Switching power at 400 V30kW
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V63A
Suitable for front mounting centreNo
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Degree of protection (NEMA)12
Motor drive optionalNo
With pre-assembled cablingNo
Device constructionComplete device in housing
Voltage release optionalNo
