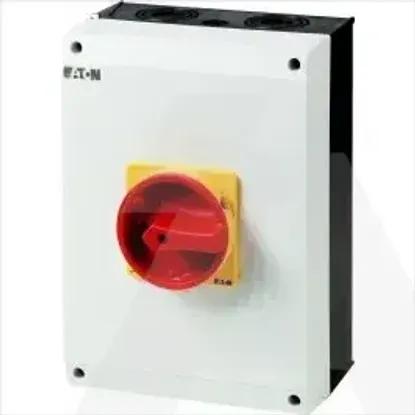

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Degree of protection (IP), front sideIP65
Rated permanent current Iu100A
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq80kA
Number of poles3
Width200mm
Number of switches1
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Depth169mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V37kW
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationYes
InterlockableYes
Height280mm
Version as safety switchYes
Type of control elementDoor coupling rotary drive
Version as main switchYes
Version as maintenance-/service switchYes
Version as reversing switchNo
Degree of protection (NEMA)12
Motor drive optionalNo
Voltage release optionalNo
Suitable for front mounting centreNo
Colour control elementRed
Suitable for distribution board installationNo
With pre-assembled cablingNo
Switching power at 400 V55kW
Suitable for floor mountingYes
Rated permanent current at AC-23, 400 V100A
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Rated short-time withstand current lcw2kA
Rated permanent current at AC-21, 400 V100A
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V55kW
