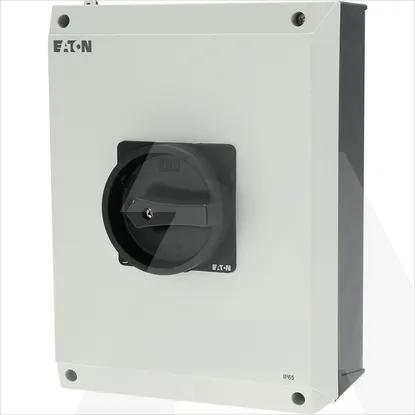

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width200mm
Height280mm
Depth169mm
Rated operation power at AC-3, 400 V37kW
Rated permanent current Iu100A
Degree of protection (IP), front sideIP65
Version as main switchYes
Number of poles3
Version as emergency stop installationNo
InterlockableYes
Version as maintenance-/service switchYes
Motor drive integratedNo
Rated short-time withstand current lcw2kA
Number of auxiliary contacts as normally open contact1
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
Version as safety switchNo
Number of auxiliary contacts as change-over contact0
Type of control elementDoor coupling rotary drive
Conditioned rated short-circuit current Iq80kA
Rated operation power at AC-23, 400 V55kW
Colour control elementBlack
Number of auxiliary contacts as normally closed contact1
Number of switches1
Suitable for front mounting centreNo
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V100A
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-23, 400 V100A
Degree of protection (NEMA)12
Voltage release optionalNo
Switching power at 400 V55kW
Device constructionComplete device in housing
With pre-assembled cablingNo
Version as reversing switchNo
