Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Depth162mm
Height280mm
Rated operation power at AC-3, 400 V37kW
Number of auxiliary contacts as normally closed contact0
Width200mm
Number of poles4
Rated operating voltage690 - 690V
Rated permanent current Iu100A
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as main switchNo
Rated short-time withstand current lcw2kA
Suitable for front mounting centreNo
Number of switches1
Colour control elementRed
Version as safety switchNo
Rated permanent current at AC-21, 400 V100A
Motor drive optionalNo
Version as emergency stop installationYes
Version as maintenance-/service switchNo
Device constructionComplete device in housing
InterlockableNo
Rated operation power at AC-23, 400 V55kW
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Type of control elementShort thumb-grip
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Suitable for distribution board installationNo
Suitable for floor mountingYes
Rated permanent current at AC-23, 400 V100A
Switching power at 400 V55kW
Version as reversing switchNo
Degree of protection (NEMA)12
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

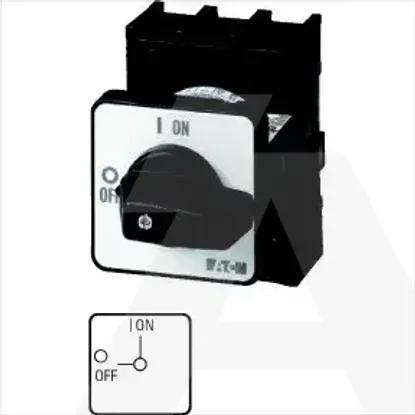

P3-100/I5-RT/N
