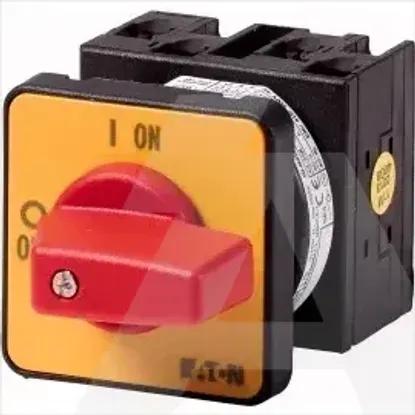

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Width48mm
Rated operation power at AC-3, 400 V5.5kW
Height48mm
Depth86mm
Rated permanent current Iu20A
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq6kA
InterlockableNo
Rated short-time withstand current lcw0.32kA
Motor drive integratedNo
Number of switches1
Version as safety switchNo
Number of poles4
Version as maintenance-/service switchNo
Version as emergency stop installationYes
Rated operating voltage690 - 690V
Type of control elementShort thumb-grip
Version as main switchNo
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-23, 400 V5.5kW
Type of electrical connection of main circuitScrew connection
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Motor drive optionalNo
Suitable for front mounting centreNo
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Suitable for distribution board installationNo
Colour control elementRed
Suitable for intermediate mountingNo
Device constructionBuilt-in device fixed built-in technique
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V13.3A
Switching power at 400 V5.5kW
Degree of protection (NEMA)12
Rated permanent current at AC-21, 400 V20A
