Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Depth92mm
Width54mm
Height55mm
Conditioned rated short-circuit current Iq6kA
InterlockableNo
Rated operation power at AC-3, 400 V5.5kW
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP30
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
Number of poles4
Rated permanent current Iu20A
Rated operation power at AC-23, 400 V5.5kW
Type of control elementShort thumb-grip
Motor drive integratedNo
Version as emergency stop installationYes
Version as main switchNo
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw0.32kA
Suitable for front mounting centreNo
Number of switches1
Version as safety switchNo
Suitable for distribution board installationYes
Colour control elementRed
Version as maintenance-/service switchNo
Suitable for floor mountingYes
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Device constructionBuilt-in device fixed built-in technique
Suitable for intermediate mountingNo
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V13.3A
Version as reversing switchNo
Rated permanent current at AC-21, 400 V20A
Switching power at 400 V5.5kW
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T0-2-8900/IVS-RT

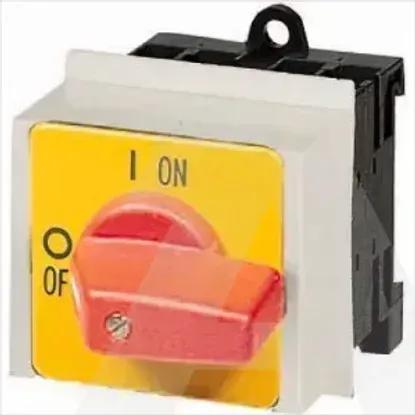

Main Product Image
