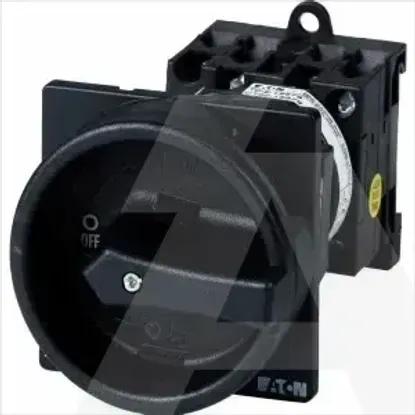

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP65
Width65mm
Conditioned rated short-circuit current Iq6kA
Number of poles4
Rated permanent current Iu20A
Number of auxiliary contacts as normally closed contact0
Height74mm
Depth128mm
Rated operation power at AC-3, 400 V5.5kW
Rated operating voltage690 - 690V
Number of switches1
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Rated operation power at AC-23, 400 V5.5kW
Version as main switchYes
Suitable for floor mountingYes
Motor drive optionalNo
Rated short-time withstand current lcw0.32kA
Voltage release optionalNo
Suitable for distribution board installationNo
Version as safety switchNo
Suitable for front mounting 4-holeNo
Version as emergency stop installationNo
Switching power at 400 V5.5kW
Degree of protection (NEMA)12
Type of control elementDoor coupling rotary drive
Version as reversing switchNo
Suitable for front mounting centreNo
Colour control elementBlack
Rated permanent current at AC-21, 400 V20A
InterlockableYes
Version as maintenance-/service switchYes
Device constructionBuilt-in device fixed built-in technique
Max. rated operation voltage Ue AC690V
Suitable for intermediate mountingYes
Type of electrical connection of main circuitScrew connection
Rated permanent current at AC-23, 400 V13.3A
With pre-assembled cablingNo
