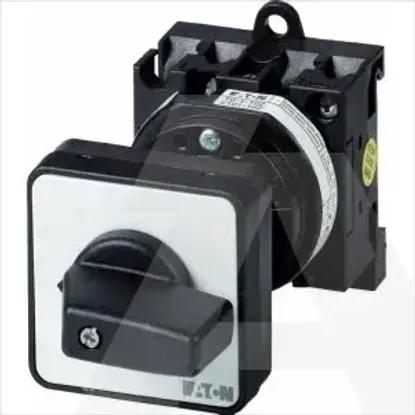

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Motor drive integratedNo
Conditioned rated short-circuit current Iq6kA
Number of switches1
Type of electrical connection of main circuitScrew connection
Width48mm
Number of poles4
InterlockableNo
Height48mm
Number of auxiliary contacts as change-over contact0
Depth128mm
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP65
Rated permanent current Iu20A
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V5.5kW
Version as emergency stop installationNo
Version as safety switchNo
Version as main switchNo
Type of control elementDoor coupling rotary drive
Version as maintenance-/service switchNo
Suitable for front mounting centreNo
Rated operation power at AC-23, 400 V5.5kW
Rated short-time withstand current lcw0.32kA
Colour control elementBlack
Suitable for distribution board installationNo
Suitable for floor mountingYes
Suitable for intermediate mountingYes
Suitable for front mounting 4-holeNo
Switching power at 400 V5.5kW
Rated permanent current at AC-21, 400 V20A
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V13.3A
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Version as reversing switchNo
With pre-assembled cablingNo
