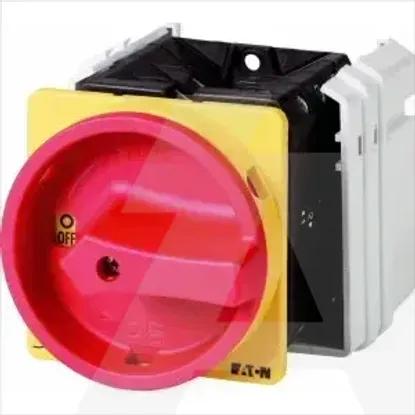

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of switches1
Number of poles4
Motor drive integratedNo
Depth156mm
Height88mm
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally open contact1
Width88mm
Type of electrical connection of main circuitScrew connection
Type of control elementDoor coupling rotary drive
Conditioned rated short-circuit current Iq2kA
Rated operation power at AC-3, 400 V30kW
Version as maintenance-/service switchYes
Version as main switchYes
Rated permanent current Iu100A
Number of auxiliary contacts as change-over contact0
Version as safety switchNo
Number of auxiliary contacts as normally closed contact1
Degree of protection (IP), front sideIP65
Version as emergency stop installationYes
InterlockableYes
Colour control elementRed
Rated operation power at AC-23, 400 V55kW
Suitable for floor mountingNo
Rated short-time withstand current lcw1.7kA
Suitable for distribution board installationNo
Suitable for front mounting centreYes
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting 4-holeNo
Degree of protection (NEMA)12
Switching power at 400 V55kW
Rated permanent current at AC-23, 400 V100A
Version as reversing switchNo
Max. rated operation voltage Ue AC600V
With pre-assembled cablingNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V100A
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T5-3-8901/EA/SVB
