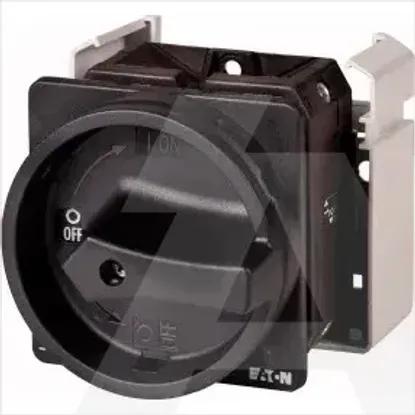

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width88mm
Height88mm
Rated permanent current Iu100A
Depth156mm
Number of poles4
Rated operation power at AC-3, 400 V30kW
Degree of protection (IP), front sideIP65
Motor drive integratedNo
InterlockableYes
Conditioned rated short-circuit current Iq2kA
Number of auxiliary contacts as change-over contact0
Number of switches1
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Type of control elementDoor coupling rotary drive
Rated operating voltage690 - 690V
Version as main switchYes
Version as maintenance-/service switchYes
Colour control elementBlack
Switching power at 400 V55kW
Version as safety switchNo
Rated permanent current at AC-21, 400 V100A
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-23, 400 V55kW
Voltage release optionalNo
Suitable for distribution board installationNo
Suitable for front mounting centreYes
Max. rated operation voltage Ue AC690V
Suitable for intermediate mountingNo
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Rated permanent current at AC-23, 400 V100A
Rated short-time withstand current lcw1.7kA
Version as reversing switchNo
Suitable for floor mountingNo
Degree of protection (NEMA)12
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T5-3-8901/EA/SVB-SW
