Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Width88mm
Rated operation power at AC-3, 400 V30kW
Number of poles6
Depth141mm
Conditioned rated short-circuit current Iq2kA
Number of auxiliary contacts as normally closed contact1
Rated operating voltage690 - 690V
Rated permanent current Iu100A
Height88mm
Number of auxiliary contacts as normally open contact1
Number of switches1
Version as safety switchNo
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Rated short-time withstand current lcw1.7kA
InterlockableNo
Version as emergency stop installationNo
Suitable for floor mountingNo
Colour control elementBlack
Type of control elementShort thumb-grip
Version as main switchNo
Motor drive optionalNo
Version as maintenance-/service switchNo
Suitable for front mounting centreNo
Suitable for front mounting 4-holeYes
Max. rated operation voltage Ue AC690V
Suitable for intermediate mountingNo
Degree of protection (IP), front sideIP65
Rated operation power at AC-23, 400 V55kW
Suitable for distribution board installationNo
Switching power at 400 V55kW
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V100A
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V100A
Version as reversing switchNo
Degree of protection (NEMA)12
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T5-4-15682/E

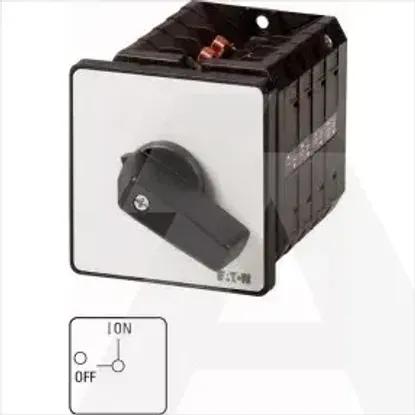

Main Product Image
