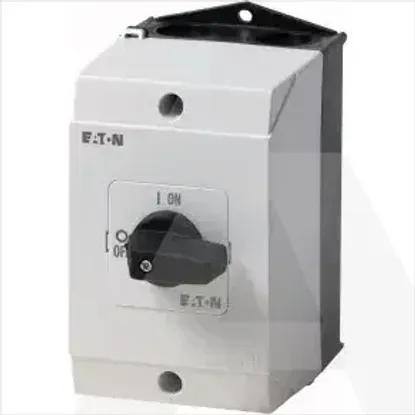

T0-1-SOND*/I1
Code: 1043366
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
Version as main switchNo
Rated operating voltage690 - 690V
Rated permanent current at AC-21, 400 V20A
Version as emergency stop installationNo
Version as safety switchNo
Rated permanent current Iu20A
Version as maintenance-/service switchNo
Rated short-time withstand current lcw0.32kA
Rated operation power at AC-3, 400 V5.5kW
Rated permanent current at AC-23, 400 V13.3A
Number of switches1
Number of auxiliary contacts as normally closed contact0
Voltage release optionalNo
Switching power at 400 V5.5kW
Number of auxiliary contacts as normally open contact0
Motor drive optionalNo
Device constructionComplete device in housing
Rated operation power at AC-23, 400 V5.5kW
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Suitable for floor mountingYes
Conditioned rated short-circuit current Iq6kA
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Colour control elementBlack
InterlockableNo
Suitable for intermediate mountingNo
Type of control elementShort thumb-grip
Degree of protection (NEMA)12
With pre-assembled cablingNo
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP65
Height102mm
Depth137mm
Width80mm
