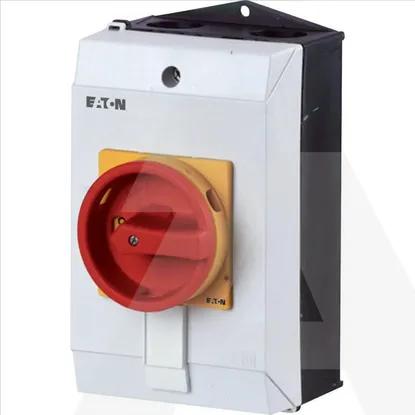

T0-1-SOND*/I1/SVB
Code: 1043367
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Version as safety switchNo
Version as main switchYes
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
Number of switches1
Rated operating voltage690 - 690V
Rated permanent current Iu20A
Rated permanent current at AC-23, 400 V13.3A
Rated permanent current at AC-21, 400 V20A
Rated operation power at AC-3, 400 V5.5kW
Switching power at 400 V5.5kW
Rated operation power at AC-23, 400 V5.5kW
Rated short-time withstand current lcw0.32kA
Conditioned rated short-circuit current Iq6kA
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of poles0
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Suitable for floor mountingYes
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Motor drive integratedNo
Device constructionComplete device in housing
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Colour control elementRed
Suitable for intermediate mountingNo
Type of control elementDoor coupling rotary drive
InterlockableYes
With pre-assembled cablingNo
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Width80mm
Degree of protection (NEMA)12
Depth137mm
Height110mm
