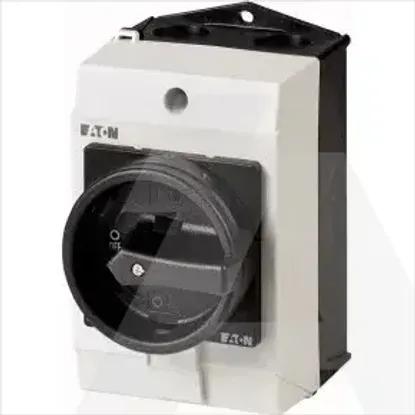

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V5.5kW
Number of poles0
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu20A
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Number of switches1
Degree of protection (IP), front sideIP65
InterlockableYes
Conditioned rated short-circuit current Iq6kA
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Version as safety switchNo
Type of control elementDoor coupling rotary drive
Motor drive integratedNo
Version as main switchYes
Version as maintenance-/service switchYes
Rated short-time withstand current lcw0.32kA
Suitable for distribution board installationNo
Colour control elementBlack
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Suitable for floor mountingYes
Rated operation power at AC-23, 400 V5.5kW
Suitable for front mounting 4-holeNo
Switching power at 400 V5.5kW
Rated permanent current at AC-21, 400 V20A
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V13.3A
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Degree of protection (NEMA)Other
Version as reversing switchNo
Voltage release optionalNo
