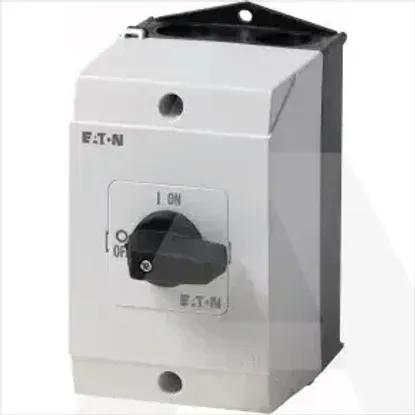

T3-1-SOND*/I2
Code: 1043378
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Max. rated operation voltage Ue AC690V
Version as main switchNo
Version as safety switchNo
Version as maintenance-/service switchNo
Version as reversing switchNo
Rated permanent current Iu32A
Rated operation power at AC-3, 400 V11kW
Rated operation power at AC-23, 400 V15kW
Rated operating voltage690 - 690V
Number of switches1
Rated permanent current at AC-23, 400 V32A
Rated short-time withstand current lcw0.65kA
Conditioned rated short-circuit current Iq1kA
Number of auxiliary contacts as normally closed contact0
Switching power at 400 V15kW
Number of auxiliary contacts as normally open contact0
Rated permanent current at AC-21, 400 V32A
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Device constructionComplete device in housing
Suitable for front mounting centreNo
Suitable for floor mountingYes
Type of control elementShort thumb-grip
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
InterlockableNo
Colour control elementBlack
Degree of protection (IP), front sideIP65
Voltage release optionalNo
With pre-assembled cablingNo
Degree of protection (NEMA)12
Motor drive integratedNo
Depth181mm
Height107mm
Type of electrical connection of main circuitScrew connection
Suitable for distribution board installationNo
Width100mm
Motor drive optionalNo
