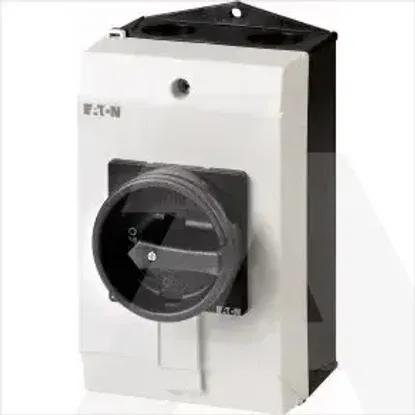

T3-1-SOND*/I2/SVB-SW
Code: 1043380
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Type of control elementDoor coupling rotary drive
Number of poles0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu32A
Motor drive integratedNo
Device constructionComplete device in housing
Motor drive optionalNo
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V11kW
Degree of protection (IP), front sideIP65
Suitable for floor mountingYes
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Degree of protection (NEMA)Other
Max. rated operation voltage Ue AC690V
Conditioned rated short-circuit current Iq1kA
Rated operating voltage690 - 690V
Suitable for front mounting centreNo
Version as safety switchNo
Version as reversing switchNo
InterlockableYes
Suitable for front mounting 4-holeNo
Version as maintenance-/service switchYes
Switching power at 400 V15kW
Number of switches1
Rated permanent current at AC-23, 400 V32A
Rated short-time withstand current lcw0.65kA
Version as main switchYes
Colour control elementBlack
Rated operation power at AC-23, 400 V15kW
Version as emergency stop installationNo
Rated permanent current at AC-21, 400 V32A
Voltage release optionalNo
