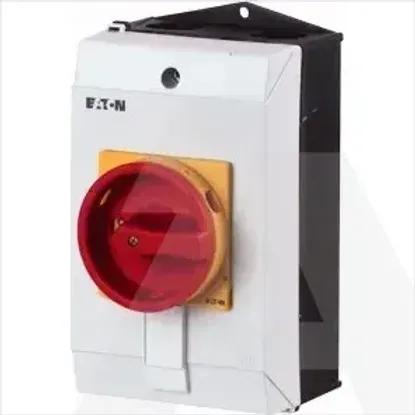

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V11kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu32A
Number of poles0
Rated operating voltage690 - 690V
Number of switches1
Version as maintenance-/service switchYes
Version as safety switchNo
Version as main switchYes
Motor drive integratedNo
Rated short-time withstand current lcw0.65kA
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-23, 400 V15kW
Type of control elementDoor coupling rotary drive
InterlockableYes
Version as emergency stop installationNo
Colour control elementRed
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Motor drive optionalNo
Suitable for floor mountingYes
Max. rated operation voltage Ue AC690V
Conditioned rated short-circuit current Iq1kA
Rated permanent current at AC-21, 400 V32A
Rated permanent current at AC-23, 400 V32A
Degree of protection (NEMA)Other
Device constructionComplete device in housing
Version as reversing switchNo
Voltage release optionalNo
Switching power at 400 V15kW
