Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Number of switches1
Degree of protection (IP), front sideIP65
Motor drive integratedNo
InterlockableYes
Rated permanent current Iu32A
Rated operating voltage690 - 690V
Version as emergency stop installationNo
Number of auxiliary contacts as normally open contact0
Number of poles0
Rated operation power at AC-3, 400 V11kW
Height180mm
Conditioned rated short-circuit current Iq1kA
Depth181mm
Width100mm
Number of auxiliary contacts as normally closed contact0
Type of control elementDoor coupling rotary drive
Version as main switchYes
Version as maintenance-/service switchYes
Voltage release optionalNo
Suitable for front mounting centreNo
Motor drive optionalNo
Version as safety switchNo
Suitable for floor mountingYes
Max. rated operation voltage Ue AC690V
Device constructionComplete device in housing
Suitable for distribution board installationNo
Version as reversing switchNo
Rated operation power at AC-23, 400 V15kW
Rated short-time withstand current lcw0.65kA
Rated permanent current at AC-23, 400 V32A
Colour control elementBlack
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V32A
With pre-assembled cablingNo
Degree of protection (NEMA)12
Suitable for intermediate mountingNo
Switching power at 400 V15kW
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

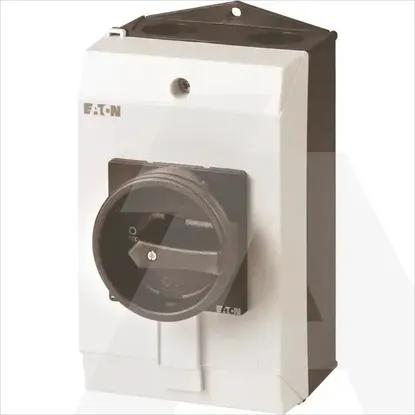

T3-5-SOND*/I2/SVB-SW
