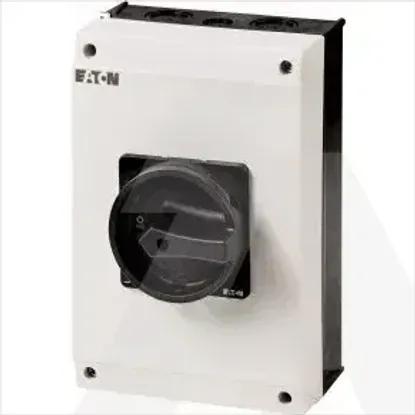

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu63A
Number of auxiliary contacts as normally closed contact0
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V22kW
Number of poles0
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq2kA
Degree of protection (IP), front sideIP65
Type of control elementDoor coupling rotary drive
Rated operation power at AC-23, 400 V30kW
Version as maintenance-/service switchYes
Rated short-time withstand current lcw1.3kA
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Version as safety switchNo
Number of switches1
InterlockableYes
Version as main switchYes
Version as emergency stop installationNo
Switching power at 400 V30kW
Suitable for floor mountingYes
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V63A
Voltage release optionalNo
Version as reversing switchNo
Motor drive optionalNo
Suitable for front mounting centreNo
Max. rated operation voltage Ue AC690V
Colour control elementBlack
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V63A
Suitable for front mounting 4-holeNo
Degree of protection (NEMA)Other
Suitable for distribution board installationNo
