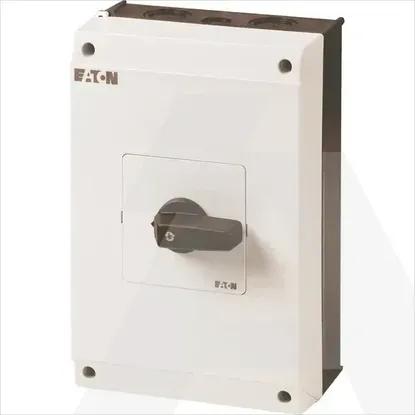

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth240mm
Width160mm
Height162mm
Number of poles0
Rated operation power at AC-3, 400 V22kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu63A
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP65
Type of control elementShort thumb-grip
InterlockableNo
Version as emergency stop installationNo
Rated short-time withstand current lcw1.3kA
Colour control elementBlack
Version as main switchNo
Number of switches1
Version as safety switchNo
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq2kA
Rated operation power at AC-23, 400 V30kW
Rated operating voltage690 - 690V
Motor drive integratedNo
Version as maintenance-/service switchNo
Max. rated operation voltage Ue AC690V
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Switching power at 400 V30kW
Voltage release optionalNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V63A
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Device constructionComplete device in housing
Suitable for floor mountingYes
Rated permanent current at AC-23, 400 V63A
With pre-assembled cablingNo
Degree of protection (NEMA)12
Version as reversing switchNo
