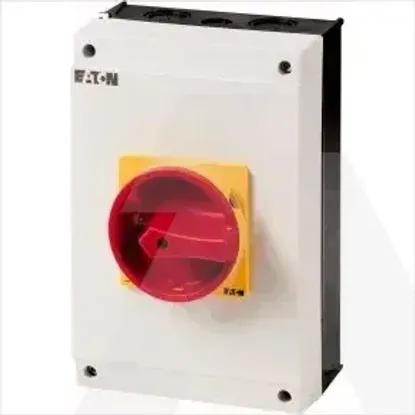

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu63A
InterlockableYes
Rated operation power at AC-3, 400 V22kW
Rated operating voltage690 - 690V
Version as main switchYes
Type of control elementDoor coupling rotary drive
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Number of auxiliary contacts as normally open contact0
Number of switches1
Conditioned rated short-circuit current Iq2kA
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Number of poles0
Rated operation power at AC-23, 400 V30kW
Rated short-time withstand current lcw1.3kA
Suitable for front mounting centreNo
Switching power at 400 V30kW
Version as reversing switchNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Version as safety switchNo
Motor drive optionalNo
Suitable for floor mountingYes
Colour control elementRed
Device constructionComplete device in housing
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V63A
Voltage release optionalNo
Suitable for distribution board installationNo
Version as maintenance-/service switchYes
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V63A
