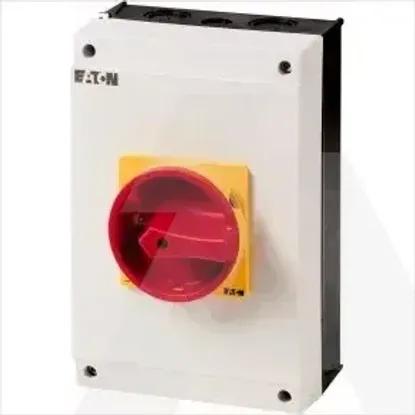

T5B-4-SOND*/I4/SVB
Code: 1043403
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Version as safety switchNo
Number of switches1
Rated operating voltage690 - 690V
Rated permanent current at AC-21, 400 V63A
Switching power at 400 V30kW
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Motor drive integratedNo
Number of auxiliary contacts as normally open contact0
Rated permanent current at AC-23, 400 V63A
Suitable for floor mountingYes
Rated operation power at AC-3, 400 V22kW
Rated short-time withstand current lcw1.3kA
Rated operation power at AC-23, 400 V30kW
Rated permanent current Iu63A
Device constructionComplete device in housing
Number of auxiliary contacts as normally closed contact0
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq2kA
Suitable for distribution board installationNo
Version as main switchYes
Version as reversing switchNo
Suitable for front mounting centreNo
Type of control elementDoor coupling rotary drive
InterlockableYes
With pre-assembled cablingNo
Degree of protection (IP), front sideIP65
Suitable for intermediate mountingNo
Type of electrical connection of main circuitScrew connection
Depth240mm
Height204mm
Width160mm
Colour control elementRed
Degree of protection (NEMA)12
