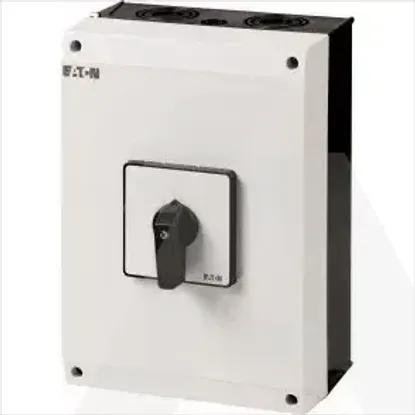

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V30kW
Number of auxiliary contacts as normally open contact0
Number of switches1
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
Number of poles0
Conditioned rated short-circuit current Iq2kA
Rated permanent current Iu100A
Number of auxiliary contacts as normally closed contact0
InterlockableNo
Rated operation power at AC-23, 400 V55kW
Version as maintenance-/service switchNo
Motor drive integratedNo
Version as emergency stop installationNo
Version as safety switchNo
Colour control elementBlack
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitScrew connection
Suitable for front mounting centreNo
Type of control elementToggle
Rated short-time withstand current lcw1.7kA
Max. rated operation voltage Ue AC690V
Version as main switchNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Suitable for floor mountingYes
Voltage release optionalNo
Degree of protection (NEMA)Other
Motor drive optionalNo
Rated permanent current at AC-21, 400 V100A
Switching power at 400 V55kW
Version as reversing switchNo
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V100A
