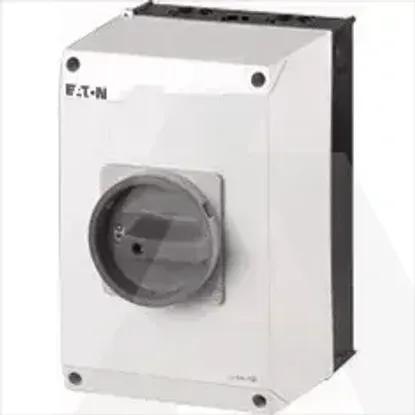

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Version as safety switchNo
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Conditioned rated short-circuit current Iq2kA
Number of poles0
Type of control elementDoor coupling rotary drive
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu100A
Rated operation power at AC-3, 400 V30kW
Number of auxiliary contacts as normally closed contact0
Version as main switchYes
Version as emergency stop installationNo
Rated operating voltage690 - 690V
Number of switches1
InterlockableYes
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP65
Version as maintenance-/service switchYes
Suitable for intermediate mountingNo
Device constructionComplete device in housing
Colour control elementBlack
Rated short-time withstand current lcw1.7kA
Rated permanent current at AC-23, 400 V100A
Suitable for front mounting centreNo
Version as reversing switchNo
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Degree of protection (NEMA)Other
Motor drive optionalNo
Rated operation power at AC-23, 400 V55kW
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V100A
Switching power at 400 V55kW
Voltage release optionalNo
