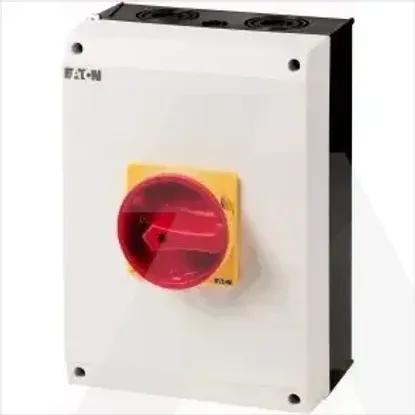

Details
- •Non standart switch, 100A
- •Low-voltage industrial components
- •Switch disconnector
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V30kW
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitScrew connection
InterlockableYes
Conditioned rated short-circuit current Iq2kA
Motor drive integratedNo
Rated operating voltage690 - 690V
Number of switches1
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Rated permanent current at AC-21, 400 V100A
Colour control elementRed
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V55kW
Suitable for distribution board installationNo
Voltage release optionalNo
Suitable for floor mountingYes
Motor drive optionalNo
Version as main switchYes
Version as safety switchNo
Suitable for front mounting 4-holeNo
Rated permanent current at AC-23, 400 V100A
Device constructionComplete device in housing
Type of control elementDoor coupling rotary drive
Suitable for front mounting centreNo
Rated short-time withstand current lcw1.7kA
Degree of protection (NEMA)Other
Suitable for intermediate mountingNo
Version as emergency stop installationNo
Switching power at 400 V55kW
Version as reversing switchNo
Rated permanent current Iu100A
Number of poles0
Max. rated operation voltage Ue AC690V
