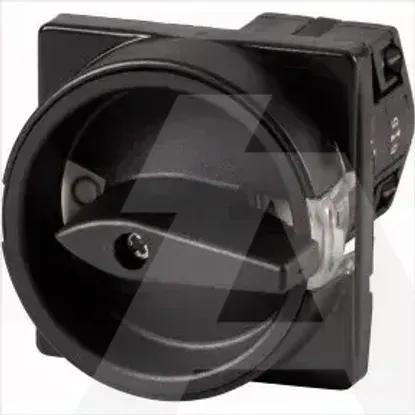

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles3
Rated operation power at AC-3, 400 V0kW
Width30mm
Rated permanent current Iu10A
Depth89mm
Height48mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Number of switches1
Degree of protection (IP), front sideIP65
Rated operating voltage500 - 500V
Conditioned rated short-circuit current Iq0kA
Number of auxiliary contacts as normally open contact0
Type of control elementDoor coupling rotary drive
Type of electrical connection of main circuitScrew connection
Version as main switchYes
InterlockableYes
Version as safety switchNo
Version as emergency stop installationNo
Version as maintenance-/service switchNo
Motor drive integratedNo
Rated operation power at AC-23, 400 V3kW
Suitable for distribution board installationNo
Colour control elementBlack
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Switching power at 400 V0kW
Rated short-time withstand current lcw0kA
Suitable for floor mountingNo
Max. rated operation voltage Ue AC500V
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V0A
Suitable for front mounting 4-holeYes
Suitable for intermediate mountingNo
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V6.6A
Version as reversing switchNo
With pre-assembled cablingNo
