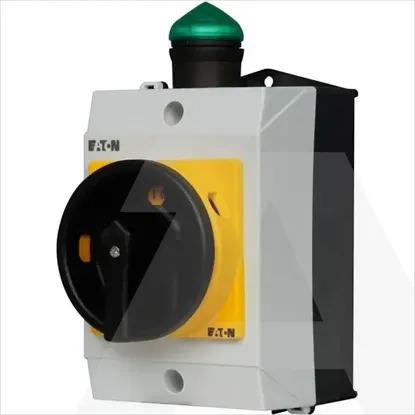

T0-2-4929US/I1/SVB-SW/L-SOND804
Code: 1043445
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles-
Number of auxiliary contacts as normally open contact-
Number of auxiliary contacts as normally closed contact-
Number of auxiliary contacts as change-over contact-
Rated permanent current at AC-23, 400 V-A
Version as maintenance-/service switchNo
Version as main switchNo
Version as emergency stop installationNo
Version as reversing switchNo
Version as safety switchNo
Number of switches1
Rated operation power at AC-3, 400 V5.5kW
Rated permanent current Iu20A
Rated permanent current at AC-21, 400 V20A
Conditioned rated short-circuit current Iq6kA
Max. rated operation voltage Ue AC690V
Device constructionComplete device in housing
Suitable for floor mountingNo
Rated operating voltage690 - 690V
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V5.5kW
Suitable for distribution board installationNo
Colour control elementBlack
Switching power at 400 V5.5kW
Voltage release optionalNo
Type of control elementDoor coupling rotary drive
Type of electrical connection of main circuitScrew connection
Motor drive optionalNo
Suitable for front mounting centreNo
Motor drive integratedNo
Degree of protection (IP), front sideIP65
Rated short-time withstand current lcw0.32kA
Suitable for intermediate mountingNo
With pre-assembled cablingNo
InterlockableNo
Degree of protection (NEMA)12
Width80mm
Depth107mm
Height122mm
