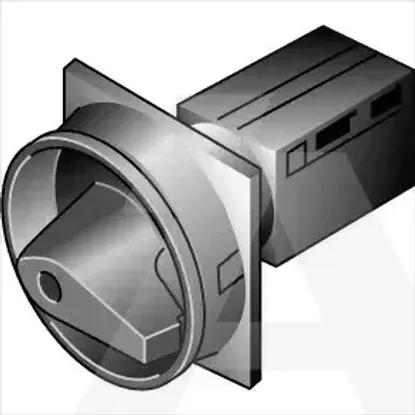

TM-1-8291/E/SVB-SW
Code: 1043475
ManufacturerEaton
Catalog number215352
TypeTM-1-8291/E/SVB-SW
CategorySwitch disconnector
EAN code4015082153526
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width30mm
Height48mm
Depth77mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V0kW
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq0kA
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
InterlockableYes
Type of electrical connection of main circuitScrew connection
Type of control elementDoor coupling rotary drive
Version as safety switchNo
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Suitable for front mounting centreNo
Rated short-time withstand current lcw0kA
Number of switches1
Colour control elementBlack
Rated operation power at AC-23, 400 V3kW
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Version as main switchYes
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Motor drive optionalNo
Version as maintenance-/service switchNo
Switching power at 400 V0kW
Voltage release optionalNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V0A
Device constructionBuilt-in device fixed built-in technique
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V6.6A
With pre-assembled cablingNo
Rated permanent current Iu10A
Number of poles2
Max. rated operation voltage Ue AC500V
