Details

  • •Low-voltage industrial components
  • •Switch disconnector
  • •1 KOM
  • •EATON

Technical specifications

Conditioned rated short-circuit current Iq6kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact2
Number of switches1
Number of poles6
Rated operation power at AC-3, 400 V5.5kW
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Rated operating voltage690 - 690V
Rated permanent current Iu20A
Type of control elementDoor coupling rotary drive
InterlockableYes
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationYes
Motor drive integratedNo
Version as safety switchNo
Rated operation power at AC-23, 400 V5.5kW
Version as main switchYes
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw0.32kA
Suitable for front mounting centreNo
Suitable for floor mountingYes
Colour control elementRed
Motor drive optionalNo
Voltage release optionalNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC690V
Device constructionComplete device in housing
Version as reversing switchNo
Degree of protection (NEMA)Other
Rated permanent current at AC-21, 400 V20A
Rated permanent current at AC-23, 400 V13.3A
Switching power at 400 V5.5kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T0-4-8903/I1/SVB

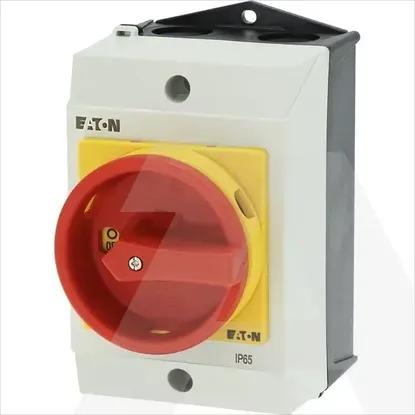

Main Product Image
