Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Version as maintenance-/service switchNo
Rated operating voltage690 - 690V
Number of switches1
Max. rated operation voltage Ue AC690V
Rated permanent current Iu20A
Version as safety switchNo
Switching power at 400 V5.5kW
Rated operation power at AC-3, 400 V5.5kW
Conditioned rated short-circuit current Iq6kA
Version as reversing switchNo
Rated operation power at AC-23, 400 V5.5kW
Rated short-time withstand current lcw0.32kA
Number of auxiliary contacts as normally open contact1
Version as main switchNo
Rated permanent current at AC-21, 400 V20A
Number of poles4
Number of auxiliary contacts as normally closed contact1
Device constructionComplete device in housing
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Motor drive integratedNo
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Colour control elementBlack
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
InterlockableNo
Degree of protection (IP), front sideIP65
Width80mm
Height122mm
Depth137mm
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V13.3A
With pre-assembled cablingNo
Degree of protection (NEMA)12
Type of control elementShort thumb-grip
Suitable for front mounting centreNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T0-3-15680/I1

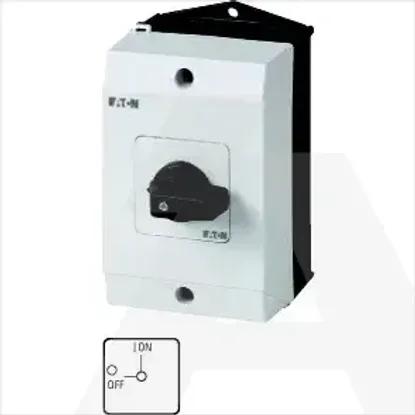

Main Product Image

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • EATON

Technical specifications

Version as maintenance-/service switch

Rated operating voltage

690 .. 690V

Number of switches

1

Max. rated operation voltage Ue AC

690V

Rated permanent current Iu

20A

Version as safety switch

Switching power at 400 V

5.5kW

Rated operation power at AC-3, 400 V

5.5kW

Conditioned rated short-circuit current Iq

6kA

Version as reversing switch

Rated operation power at AC-23, 400 V

5.5kW

Rated short-time withstand current lcw

0.32kA

Number of auxiliary contacts as normally open contact

1

Version as main switch

Rated permanent current at AC-21, 400 V

20A

Number of poles

4

Number of auxiliary contacts as normally closed contact

1

Device construction

Complete device in housing

Number of auxiliary contacts as change-over contact

0

Motor drive optional

Motor drive integrated

Voltage release optional

Suitable for front mounting 4-hole

Suitable for floor mounting

Colour control element

Black

Version as emergency stop installation

Type of electrical connection of main circuit

Screw connection

Interlockable

Degree of protection (IP), front side

IP65

Width

80mm

Height

122mm

Depth

137mm

Suitable for distribution board installation

Suitable for intermediate mounting

Rated permanent current at AC-23, 400 V

13.3A

With pre-assembled cabling

Degree of protection (NEMA)

12

Type of control element

Short thumb-grip

Suitable for front mounting centre
