Details
- •Low-voltage industrial components

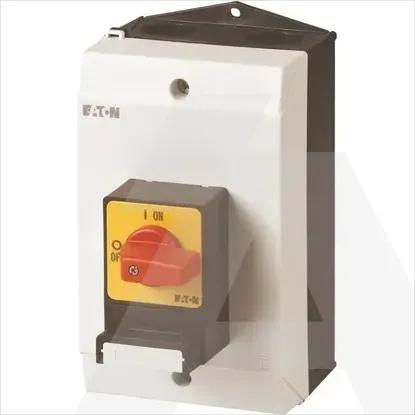

- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V5.5kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu20A
Conditioned rated short-circuit current Iq6kA
Rated operating voltage690 - 690V
Number of switches1
Number of poles5
Degree of protection (IP), front sideIP65
Version as emergency stop installationYes
Type of electrical connection of main circuitScrew connection
InterlockableYes
Type of control elementDoor coupling rotary drive
Motor drive integratedNo
Colour control elementRed
Rated short-time withstand current lcw0.32kA
Rated operation power at AC-23, 400 V5.5kW
Version as safety switchNo
Version as maintenance-/service switchYes
Version as main switchYes
Voltage release optionalNo
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V20A
Max. rated operation voltage Ue AC690V
Suitable for front mounting 4-holeNo
Motor drive optionalNo
Suitable for floor mountingYes
Device constructionComplete device in housing
Switching power at 400 V5.5kW
Version as reversing switchNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V13.3A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T0-3-8341/I1/SVB
