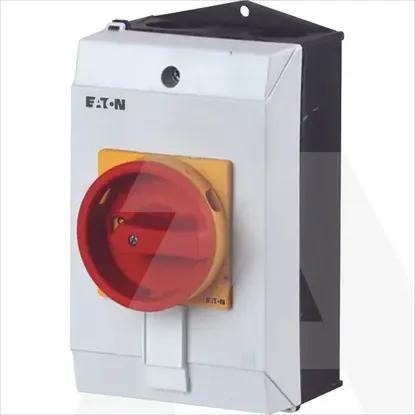

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu32A
Number of auxiliary contacts as normally open contact1
Rated operation power at AC-3, 400 V11kW
Number of auxiliary contacts as normally closed contact1
Motor drive integratedNo
Version as main switchYes
Version as maintenance-/service switchYes
Number of switches1
Rated operating voltage690 - 690V
Rated operation power at AC-23, 400 V15kW
Conditioned rated short-circuit current Iq1kA
Degree of protection (IP), front sideIP65
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Number of poles4
InterlockableYes
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Suitable for front mounting centreNo
Version as safety switchNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Type of control elementDoor coupling rotary drive
Motor drive optionalNo
Rated short-time withstand current lcw0.65kA
Version as emergency stop installationYes
Voltage release optionalNo
Suitable for floor mountingYes
Colour control elementRed
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V32A
Version as reversing switchNo
Switching power at 400 V15kW
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V32A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T3-3-8901/I2/SVB
