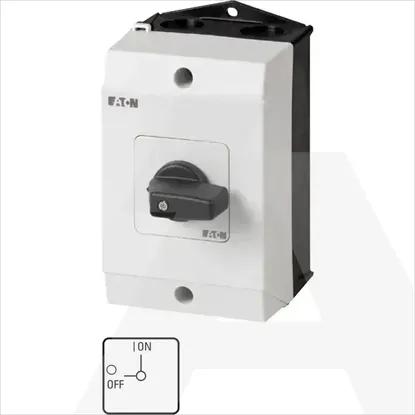

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Suitable for front mounting centreNo
Rated short-time withstand current lcw0.32kA
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Rated operating voltage690 - 690V
Number of switches1
Number of auxiliary contacts as normally closed contact1
Version as maintenance-/service switchNo
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-23, 400 V5.5kW
Version as emergency stop installationNo
Version as main switchNo
Number of auxiliary contacts as normally open contact1
Type of control elementToggle
InterlockableNo
Colour control elementBlack
Rated operation power at AC-3, 400 V5.5kW
Rated permanent current Iu20A
Version as safety switchNo
Conditioned rated short-circuit current Iq6kA
Number of poles6
Degree of protection (IP), front sideIP65
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V20A
Degree of protection (NEMA)Other
Device constructionComplete device in housing
Suitable for distribution board installationNo
Rated permanent current at AC-23, 400 V13.3A
Motor drive optionalNo
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Switching power at 400 V5.5kW
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T0-4-15164/I1
